Quick Details

  • Condition: New
  • Type: Interlock Block Making Machine
  • Brick Raw Material: Clay
  • Processing: Brick Molding Machine
  • Method: Hydraulic Pressure
  • Automatic: Yes
  • Capacity: 270-340 pcs per hour
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: YINGFENG
  • Model Number: ECO2700
  • Voltage: 220-440V
  • Power: 5.5 KW motor or 12 HP diesel engine
  • Dimension(L*W*H): 1200*900*1200mm
  • Certification: ISO9001:2000
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • pressure: 18-22MPA
  • advantage 1: produced various high quality and precision blocks,bricks and floors
  • advantage 2: can choose diesel engine and motor
  • forming way: hyfraulic press
  • raw material: clay,soil, sement,etc.
  • total weight: 1000kg
  • pallet: no need
  • mould: customed
  • brick type: interlocking or cement brick
  • color: customed

Packaging & Delivery

Packaging Details Steel plate case
Delivery Time 10~15 days after deposit

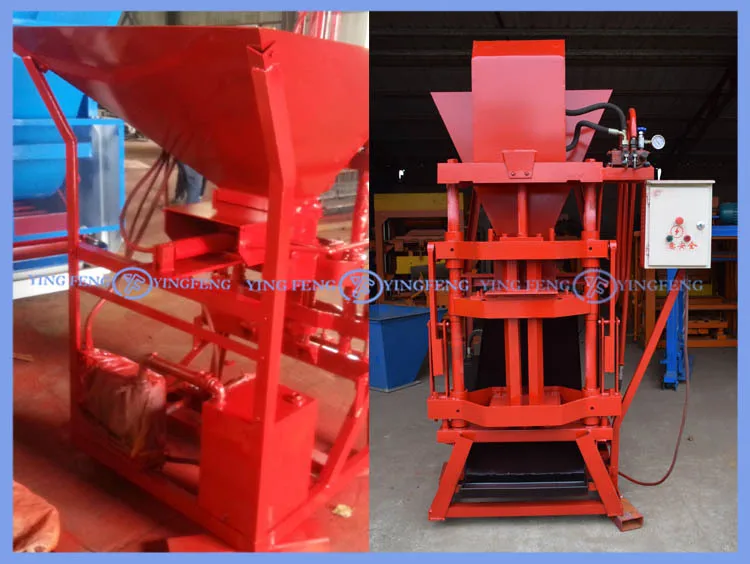

Yingfeng ECO2700 hydraform interlocking block making machine,interlocking block machines with latest technology

Product Description
ECO2700 interlocking block making machine is new equiped with automatic feeding mould and lifting mould.It can produced various high quality and precision blocks,bricks and floors only by this one machine without buying any other equipment.You can choose diesel engine and motor for ECO2700 brick machine.
Hydraulic load (CH): Allows faster loader box, moved by a hydraulic piston giving precision loading cycle compound to be pressed into the mold box. Slides on the lower guides in treated steel and nylon top this material being self-lubricating, low friction coefficient enabling mechanical light and silent movements, increasing the useful life.
Hot matrix (MC) developed specifically to meet the physical aspects of bricks in regions with high humidity where the soil is clayey, improving finishing bricks giving sharp edges, smooth walls, facilitating its removal.
Cargo production: up to 3,500 bricks per day (8 hours) without interruption of equipment, one unit operation.

Main Technical Parameters( ECO2700 interlocking block making machine)
Diemension 1200*900*1200mm
Moulding Area 300*150*100mm
Host Machine Power Automatic
Mixer modelJS350
Moulding Period 11~13 s
Weight 1000KGS
Volatge 220-440V
Power5.5 KW motor or 12 Hp diesel engine

Our company can takeTurnkey interlock brick project



Capacity
Capacity ( ECO2700 interlocking block making machine )
Block SizePCS/Mould PCS/Hour PCS/8Hours
 250*125*100mm 270-340  2160~2720
 300*150*100mm   270-340  2160~2720

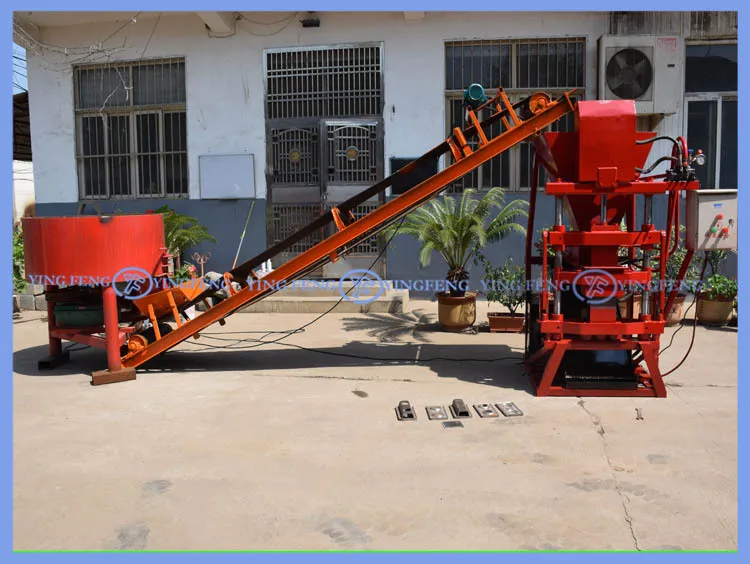

Customer usage

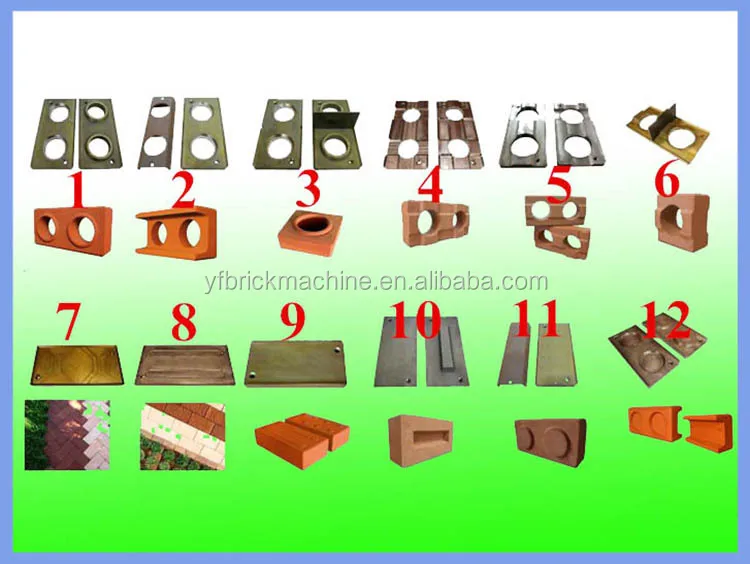

  ECO2700 interlocking block making machine Brick samples and usage:



FAQ
FAQ
1.Raw material ratio:
A:Method one: 5% cement + clay
   Method two: 8% cement + clay
   Method three: 10% cement + clay
   Method four:  10% cement  + sand + water
2.What kind of bricks can be produced by the machine?
A:Our machine can produce interlocking brick, paver brick with differents sizes.Different bricks can be made by changing different moulds.
3.What models of the machines can be choosed for customers?
A:We have full auto , semi auto, manual ,mobile, egg laying , paver machine for your choice.
4.How about the working life of our machine?
A:Our machine can be used for over 8 years.

Related Products
Related Products ( Click bellowing different models to get more choice )
ModelPhotoHPKWPcs/cycleForming cycle(S)Capacity(pcs/h)Pcs/8hoursOperation type
YF1-40 00135~4090~100 720~800Manual
YF2-4000235~40180~200 1440~1600Manual
YF1-2562.2120~25144~1801152~1440Semi-auto
YF1-2083115~20180-2201440-1760Semi-auto
YF1-10125.517~10360~4302880~3440Full auto
M7M18 115~20180-2201440-1760Semi-auto
ECO 1-2562.2120~25144~1801152~1440Semi-auto
ECO 2700125.5111~13270~3402160~2720Semi-auto
ECO 7000125.5212~15480-5803840~4800Semi-auto
Contact

Please contact us :

If you want to know more details for our ECO2700  interlocking block making machine



Skype: yingfengt01

Email: yingfeng01(at)zzyfmc.com

China Mobile Number ( Whatsapp, Wechat ,Viber):

+86 15936251795;  +86 18638712391


Web: www.yfbrickmachine.com



If you want to visit us, please note our city name, Zhengzhou city,Henan Province, China.

Our air port name is : Zhengzhou Xinzheng International air port.

Train station name is: Zhengzhou (Zhengzhou north) train station
