Quick Details

  • Condition: New
  • Type: Hollow Block Making Machine
  • Brick Raw Material: Concrete
  • Processing: Brick Molding Machine
  • Method: Hydraulic Pressure
  • Automatic: Yes
  • Capacity: 2400~2880 pcs/hour ( 40X20X20 CM)
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: YINGFENG
  • Model Number: QMY10-15
  • Voltage: 220 ~440 V
  • Power: 16 Kw
  • Dimension(L*W*H): 3250X2100X2300 mm
  • Certification: ISO9001:2000
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Advantage one: Mobile
  • Advantage two: Can change moving direction

Packaging & Delivery

Packaging Details sea worthy wooden case or iron box ,or container
Delivery Time 15~25 days

   Yingfeng QMY10-15 Automatic concrete block making machine



Company Information

Zhengzhou Yingfeng Machinery Co.,Ltd. Is a high tech enterprise in brick making machinery field,

which integrating the science,industry and trading.Our company has more than 30 brands, hundreds

 of specifications for brick and tile machinery.

Our company  provides customers with various:

clay brick making equipment,         Concrete block making machine,

interlock brick making machine,     paver and curbstone brick machine,

tile press machine etc.



Product Description
Main Technical Parameters(    QMY10-15 Automatic concrete block making machine    )
Diemension 3250X2100X2300 mm
Demold method Hydraulic
The size of the palletNo need
Mixer modelJS750
Moulding Period 10-15s
Excitation frequency 3200 HZ
Volatge 220V~ 440V  or adapt to your local voltage
Power16 Kw
Raw material cement, dust and coal fly ash, cinder, slag, gangue,etc
Weight 4.5 T
 Hydraulic pressure 16~20 MPA









Capacity
Capacity   QMY10-15 Automatic concrete block making machine )
Block SizePCS/Mould PCS/Hour PCS/8Hours
400x200x200mm 10 2400 19200
400x150x200 mm 122880 23040
400x120x200 mm 18
4320 34560

Customer usage

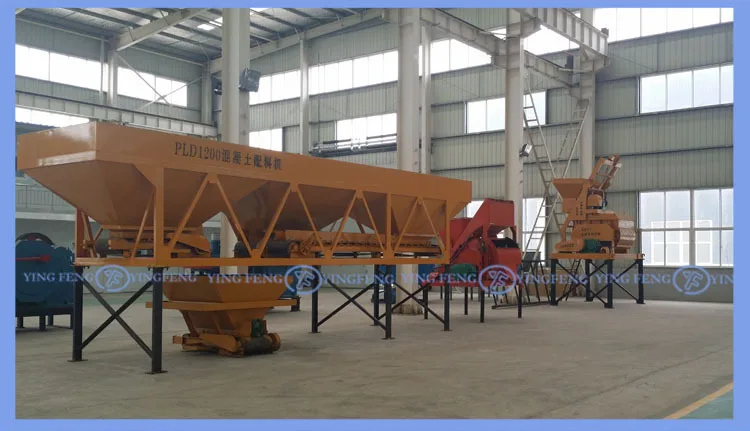

 Batching machine and Mixer  for  QMY10-15 Automatic concrete block making machine



1.   Cement Silo : it is to stock cement

2.  Auto batching machine is to control the rate of each raw material

3.  Screw conveyor: it is to convey raw material into mixer.

5.  JS750 twin shafts concrete mixer: Concrete mixer is a forward mixing, reverse discharging. Mixing plastic and half dry concrete.This series mixer can mix various matching of concrete, sand pulp, Slurry, and apply to all kinds of medium and small-sized buildings.

6.  Wheel loader : it is to load the mixed raw material to block machine .

7.  Movable block making machine

8.  Finished block
Related Products



Related Products ( Click bellowing different models to get more choice )
ModelPhoto (KW)

Pcs/cycle

 400x200x200mm

Forming cycle(S)

Capacity(pcs/h)

 400x200x200mm

Pcs/8hours

 400x200x200mm

QMJ4 -409.6435~40330~3802600~3000
QMY12-1517.51212~152880~300023040~24000
QTJ4-409.6435~40330~3802600~3000
QMY6-2512620~251000~10808000-9000
QMY4- 30 5.2425~30450~5003800~4000
QMR4- 458 HP440~45320~3602560~2880
QMJ4- 456.6440~45320~3602560~2880
QMJ2- 451.85240~45160~1801280~1440
QMY10-15161012~152400~288019200-23040
FAQ (    QMY10-15 Automatic concrete block making machine )
1.Raw material ratio:
Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
2.What kind of bricks can be produced by the machine?

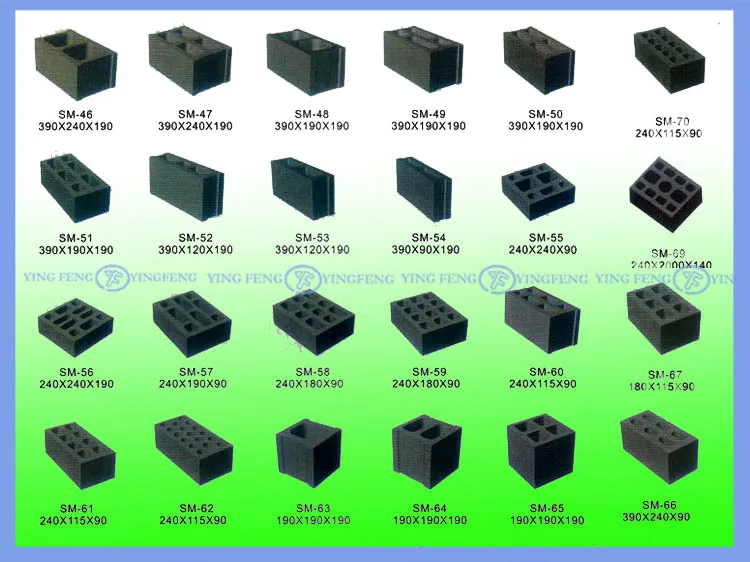

A:Our machine can produce blocks, paver brick with differents sizes.Different bricks can be made by changing different moulds.
3.What models of the machines can be choosed for customers?
A:We have full auto , semi auto, manual ,mobile, egg laying , paver machine for your choice.

Videos
Brick making machine working Videos ( Copy and stick the video link on browser )

QMJ4 -40 Brick Laying Machine

https://www.youtube.com/watch?v=LyXtjx51G6I

QMY12- 15 Concrete Block Production Line

https://www.youtube.com/watch?v=nCs2PQ29m2M

QTJ4- 40  Concrete Block Making Machine

https://www.youtube.com/watch?v=HJeOG2hwmZ0

QMY6 -25 Mobile Block Machine

https://www.youtube.com/watch?v=53Hdds_rTBA

QMY4- 30 Mobile Brick Making Machine

https://www.youtube.com/watch?v=FfyhszTUttg

QMR4- 45 Mobile Concrete Block Machine

https://www.youtube.com/watch?v=V0KYc0j-OWM

QMJ4- 45 Egg Laying Block Machine

https://www.youtube.com/watch?v=98umft0QmKw

QMJ2- 45 Concrete Egg Laying Machine

https://www.youtube.com/watch?v=ntc-5VXBSz8

We can provide Vacuum clay brick , Interlocking brickConcrete block ,Tile and Paver machine

Contact Us

Contact us for  QMY10-15 Automatic concrete block making machine



China Mobile Number ( Whatsapp, Wechat ,Viber): 0086 18638712391  or     008615039963315

Email:  kai(at)zzyfmc.com     skype: fanchen588



Web: www.yfbrickmachine.com



If you want to visit our Chinese factory, please note our city name, Zhengzhou city.

Our air port name is : Zhengzhou Xinzheng International air port.

Train station name is: Zhengzhou (Zhengzhou north) train station
